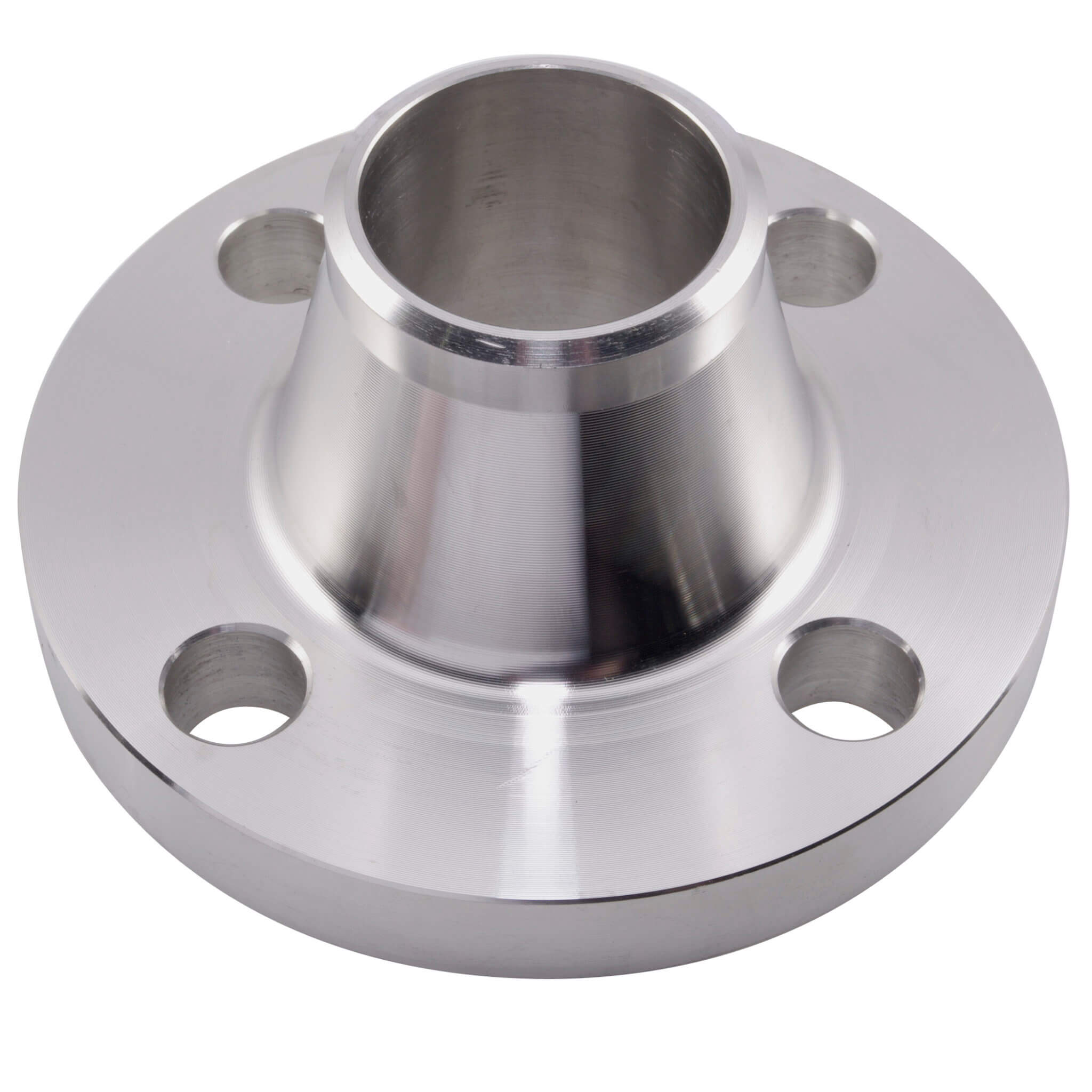

WELDNECK FLANGE

WELDNECK FLANGE

This steel weld neck flanges is circumferentially welded into the system at its neck which means that the integrity of the butt welded area can be easily examined by radiography. The bores of both pipe and flange match, which reduces turbulence and erosion inside the pipeline. The weld neck is therefore favoured in critical applications. The various types of steel weld neck flanges are:

Weld Neck Flat Face Flanges

Raised Face Weld Neck Flanges.

Stainless Steel : ASTM A 182, A 240

Nickel Alloys

Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Class

150#, 300#,400 #,600#,900#, 1500# & 2500 #.

Copper Alloys

Copper, Brass & Gunmetal

ANSI

ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

Grade

F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel

ASTM A 105, ASTM A 181

Alloy Steel

ASTM A 182, GR F1, F11, F22, F5, F9, F91

Size

1/8" NB TO 48"NB.

DIN

DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S

BS4504 , BS4504, BS1560, BS10
